Manufacturer ACO
Product ID ACO-97477

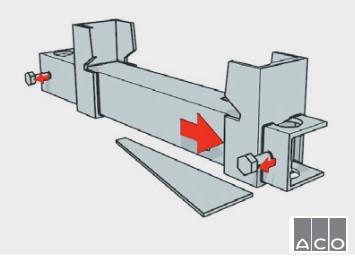

ACO K100 Installation Device

Discounts Apply !

ACO Installation devices are used to align channels to create a complete trench run.
Once the installation is complete using these devices the concrete is poured around the device and channels.
Installation devices allow a single concrete pour.




Loosen screws on both sides to allow the installation device to be positoned on the rebar.


Positon installaton device at required height and tghten screws to lock installaton device
to rebar. Ensure adjustable clamp is backed up as far possible


Positon channels in the middle of the installaton device as shown. Check to ensure channels
are at proper height; height can be adjusted by loosening the two installaton
device screws and re-positoning theinstallaton device as required.


When both channels are mated together, move them all the way against the fixed clamp of the installaton
device (far left). Slide adjustable clamp slghtly against the two channels (may require tapping with a hammer).
Insert metal wedge into slotted feature (may require tapping with a hammer) to lock
adjustable clamp into place (far right)



Price: $50.00
