Channel Width: 4" Interior - 6 1/4" Total
Material: High Density Polyethelene (HDPE)
Edge Protection: HDPE Edge - DI Frame Available
View Z886 Complete Kits 10-99 Feet
Grate Width: 5 3/8" Wide
Material: Various
Grate Lengths: 20" and 40" Lengths
Dimensions: 6" X 20", 12" X 24", 24" X 24"
Material: High Density Polyethelene (HDPE)
Edge Protection: HDPE and Frame
Depth: Varies
Channel Width: 9 3/4" Interior, 12" Total
Material: High Density Polyethelene (HDPE)
Edge Protection: Ductile Iron Frame
View Z882 Complete Kits 8-96 Feet
Channel Width: 2 1/2" Int - 3 1/2" Total
Material: High Density Polyethelene (HDPE)
Edge Protection: HDPE Edge
View Z880 Complete Kits 8-96 Feet
Channel Width: 3 1/4" Int - 4 3/4" Total
Material: Polypropylene
Edge Protection: Polypropylene
Depth: 2 7/8" Trench Depth
Channel Width: 4" Interior - 6" Total
Material: Polypropylene
Depth: 3-1/2" Trench Depth
Channel Width: 12" 18" 21" Wide
Material: High Density Polyethelene (HDPE)
Edge Protection: DI Frame
Depth: 9" to 23" Deep Depending on Slope
Channel Width: 6" Wide, 12" Wide
Material: (FRP) Fiber Reinforced Polyester Fiberglass
Edge Protection: DI Frame
Channel Width: 1/2" Slot, 4" Wide
Material: High Density Polyethelene (HDPE)
Edge Protection: HDPE Slotted
Depth: 8" Deep (-4) - 11 3/4" (-6) - 17 5/8" (-8)
Dimensions: 6"W, 12"W, 17"W, 23"W, 26"W
Material: Ductile Iron Frame and Grate
Edge Protection: Frame
Depth: N/A - No Channel Included
Grate Width: 11 1/4" Wide
Special Order Items
Material: Various
Grate Length: 24" Length
Grate Width: 5 3/8" Wide
Special Order Items
Material: Various
Grate Length: 20" & 40" Length
Zurn® and the Zurn Logo are trademarks of Zurn Industries LLC.
All other trademarks referenced herein are the property of their respective owners.

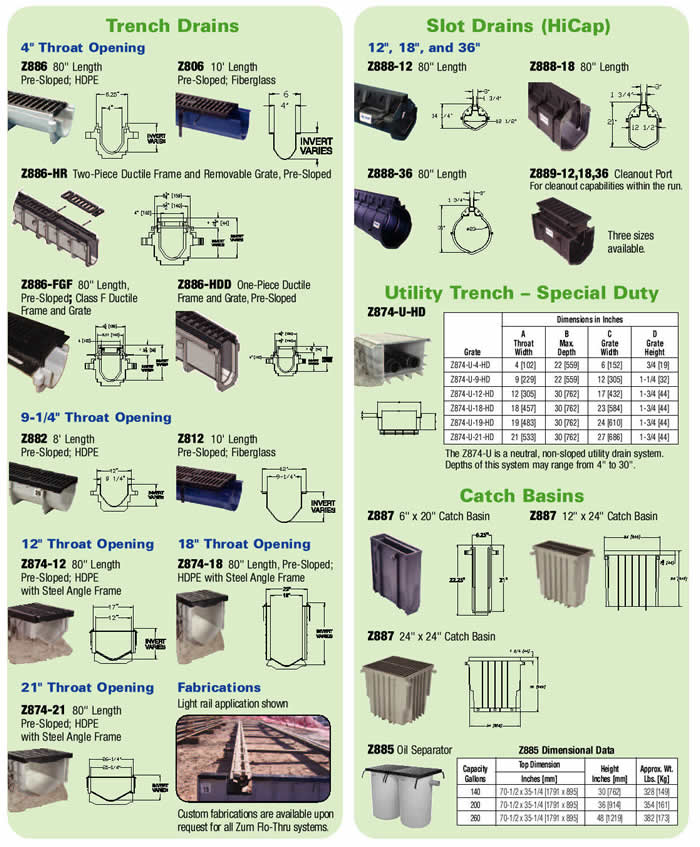

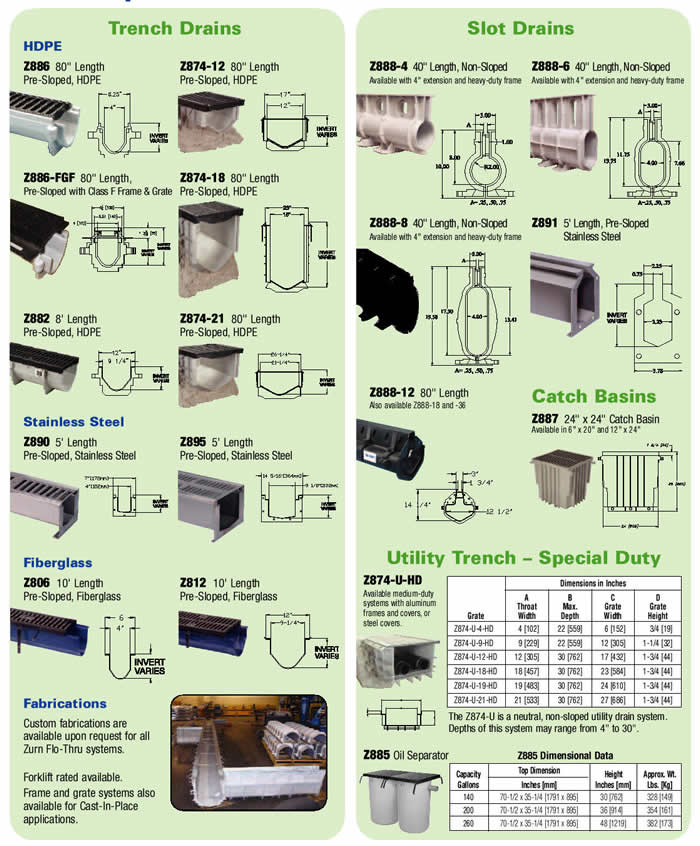

Zurn Quick Guide
| Series | Use | Material | Width | Grate Classes | Slope |
| Z880 | Pool & Residential | High Density Poly (HDPE) | 2 1/2" (1.75" Int) | A | Flat Only |
| Z884 Shallow | Pool & Residential | Polypropylene | 4 3/4" (3 1/4 Int) | A and B Class | Flat Only |
| Z883 Shallow | Pool & Residential | Polypropylene | 6" (4" Int) | A to F Class | Flat Only |
| Z886 | Res & Commercial | High Density Poly (HDPE) | 6" (4" Int) | A to F Class | Flat or Sloped |
| Z882 | Commercial | High Density Poly (HDPE) | 12" (9 1/4" Int) | A to E Class | Flat or Sloped |
| Z874-12 | Comm & Hwy | High Density Poly (HDPE) | 17" (12" Int) | C and F Class | Flat or Sloped |
| Z874-18 | Comm & Hwy | High Density Poly (HDPE) | 23" (18" Int) | C and F Class | Flat or Sloped |
| Z874-21 | Comm & Hwy | High Density Poly (HDPE) | 26" (21" Int) | C and F Class | Flat or Sloped |
Zurn Replacement Trench Grate Guide
| Series | Grate Width | Grate Lengths | Series | |
| 2" System Grates | 1.75" | 20" | Z880 | |
| 4" System Grates | 4 1/8" | 20" and 40" | Z884 Shallow | |
| 6" System Grates | 5 3/8" | 20" and 40" | Z886 and Z883 Shallow | |
| 12" System Grates | 11 1/4" | 24" | Z882 | |
| Z874-12 Grates | 16 1/4" | 20" | Z874-12 | |
| Z874-18 Grates | 22 1/4" | 20" | Z874-18 | |
| Z874-21 Grates | 25 1/2" | 20" | Z874-21 |
Featured Product - CPZ880 Series Pool Drain Complete Kit 8 Foot Complete
$199.00
- 2 - 48" Sections of Trench Drain.
- 4 - 24" Decorative Grates.
- 1 - End Cap with 1 1/2" Outlet
- 2 - Solid End Caps.
- 1 - Bottom Outlet with 1 1/2" Outlet
Most Popular Zurn Trench Drain Series
The Z880 Perma-Trench 2-1/2" Wide Trench Drain is mainly used for pool and showers. It is made of High Density Polyetheylene (HDPE) and features a snap on Heel Proof Polyethylene Grate. This pool / shower drain comes in 5 colors; Gray (standard), Brick Red, Blue, Sand, and White. The Z880 comes in 48" pre-engineered modular channel sections with 24" grates and is available in flat. We list the Z880 Perma-Trench on our website in both CPZ880 Series Complete Kits and By Item. The replacement grates can be found in the By Item section.
The Z884 4-3/4" Shallow Drain System (3.25" Interior) is an excellent choice where depth of installation is a factor. It is made of polypropylene, has interlocking ends, and radiused bottom. The Z884 has a 2-7/8" trench depth for depth restricted applications and comes in flat only. Grates are available in a variety of A and B Class and ADA. We do not currently list the Z884 Shallow on our website. Please contact us for a quote if this series is required.
The Z886 Perma-Trench 6" wide (4" Interior) is Zurn's most popular trench drain series. It comes in 80" pre-engineered modular sections with 20" and 40" grates. The series features .75% Built in Slope or flat, and has a radiused bottom. Optional ductile iron frames are available for heavy duty applications. The Z886 is is made of High Density Polyetheylene (HDPE) and has a wide variety of grate options. We list the Z886 Flo Thru on our website in both CPZ886 Series Complete Kits and By Item. The Z886 series replacement grates use 5 3/8" Wide Zurn Z886 Grates
The Z882 Perma-Trench 12" Drain System (9.25" Interior) is for high volume water runoff. The Z882 comes in eight foot pre-engineered modular sections with 24" Grates. It is made of High Density Polyetheylene (HDPE) and is available in 1.04% Built-In Slope or Neutral (flat). The trench drain grate options run from pedestrian to FAA rated and to ADA compliant. We list the Z882 in CPZ882 Complete Kits or By Item. We also list the Z882 replacement grates in 11 1/4" wide Z882 Grates.
Other Zurn Trench Drain Series
The Z883 6" Shallow Drain System (4" Interior) is an excellent choice where depth of installation is a factor. It is made of polypropylene, has interlocking ends, and radiused bottom. The Z883 has a 3-1/2" trench depth for depth restricted applications and comes in flat only. Grates are available in a variety and use the Z886 5-3/8" Wide Trench Drain Grates. We do not currently list the Z883 Shallow on our website. Please contact us for a quote if this series is required.
The Z874-12 Perma-Trench 17" wide (12" Interior) is for heavy duty industrial applications. A heavy duty steel frame is installed at the factory prior to shipping. It comes in 80" pre-engineered modular sections and is available with inverts ranging from 9.25" to 36.21". The Z874 channel is is made of High Density Polyetheylene (HDPE) and has a wide variety of grate options. We do not currently list the Z874-12 on our website. Please contact us for a quote if this series is required.
The Z874-18 Perma-Trench 23" wide (18" Interior) is for heavy duty industrial applications. A heavy duty steel frame is installed at the factory prior to shipping. It comes in 80" pre-engineered modular sections and is available with inverts ranging from 9.25" to 36.21". The Z874 channel is is made of High Density Polyetheylene (HDPE) and has a wide variety of grate options. We do not currently list the Z874-18 on our website. Please contact us for a quote if this series is required.
The Z874-21 Perma-Trench 26-1/4" wide (21-1/4" Interior) is for heavy duty industrial applications. A heavy duty steel frame is installed at the factory prior to shipping. It comes in 80" pre-engineered modular sections and is available with inverts ranging from 9.25" to 36.21". The Z874 channel is is made of High Density Polyetheylene (HDPE) and has a wide variety of grate options. We do not currently list the Z874-21 on our website. Please contact us for a quote if this series is required..
Zurn offers a wide variety of other series for specialized applications. These series include:
Aluma-Trench Aluminum Trench Drain
ZA880-300 3" Extruded Aluminum Trench Drain
ZA880-156 1-5/8" Extruded Aluminum Trench Drain
Flo-Thru Fiberglass Trench Drain
Z806 6" Flo-Thru Fiberglass Drain System
Z812 12" Flo-Thru Fiberglass Drain System
Z817 Catch Basins
Sani-Flo Stainless Steel Trench Drain
Z890 6" Sani-Flo Stainless Steel Drain System
Z895 12" Sani-Flo Stainless Steel Drain System
Z891 3/4" Sani-Flo Stainless Steel Slot Drain
Z897 Catch Basins
Frame and Grate Cast-in-Place Trench Drain
Z706 6" Frame and Grate System
Z712 12" Frame and Grate System
Z717 17" Frame and Grate System
Z723 23" Frame and Grate System
Z726 26" Frame and Grate System
Slot Drain/Hi-Cap LLDPE Trench Drain
Z888-4, -6, -8 Polyethylene Slot Drains
Z888-12, -18. -36 High Capacity Drain Systems
Z889-12, -18, -36 High Capacity Cleanout Port
Oil Separators
Z885 Oil Separators
If any of these products are specified in your project, or if you require additional information Please contact us. We would be happy to supply a quote if needed.
More Zurn Info
Zurn offers the widest variety of trench drain and utility duct/chase systems in the world. When it comes to designing trench drains and in floor utility chase, Zurn's ease of installation, load-bearing strength, hydraulic capacities, chemical resistance, and structural technology assures the designer, contractor and owner the right trench for the job is Zurn's trench drain and utility chase systems.
