Manufacturer Josam Pro-Plus
Product ID 100-Rail

100-Rail for Channels

Discounts Apply !

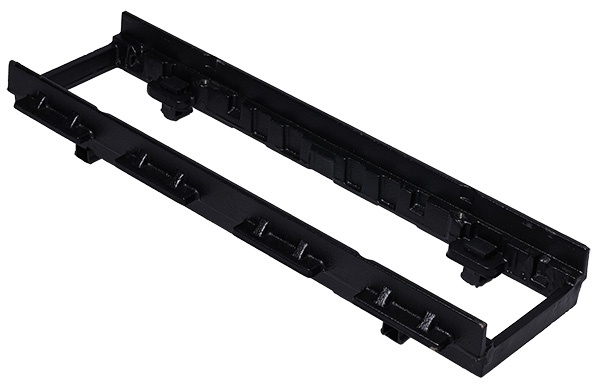

Ductile Overlay Rails

Overlay rails are made of cast ductile iron. They are supplied in Half Meter (19.7 in) sections and are applied to the standard 100C SMC-GRP Channels

They cover and protect the channel edge in heavy duty traffic applications.

The 100-Rail Overlay rails are recommended for applications utilizing hard wheeled traffic (forklift) and heavy industrial and military vehicles.
When the ductile iron overlay rails are installed and the appropriate load class grates are selected,
the system can accomodate a class E load rating up to 60 tons.

For use with 100C Channels and CPS100HD Trench Drain Kits

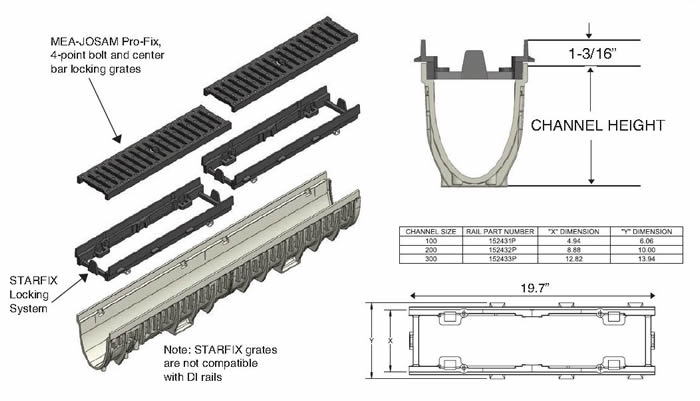

Spec For DI Rail and channel









1 DI Rail Only

Price: $58.00
